[D30] How to Avoid Offset Prints
Print offset are usually caused by the following reasons:
Incorrect label position when printing, wrong template of label selected, Use Unofficial labels, Incorrect label placement

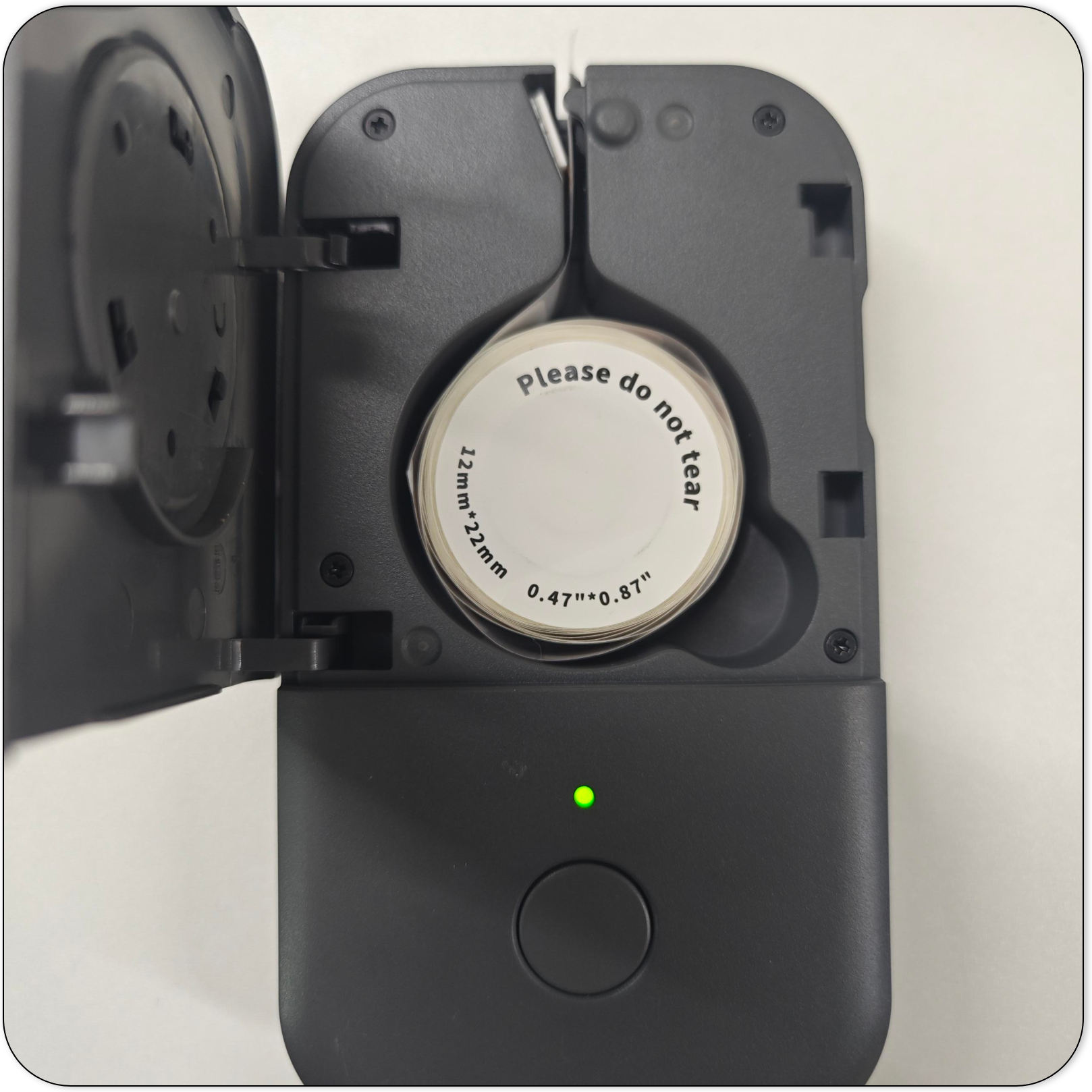

1. Verify that the label is official and installed correctly.
Place the labelled side to the left and pull the consumable out flat.

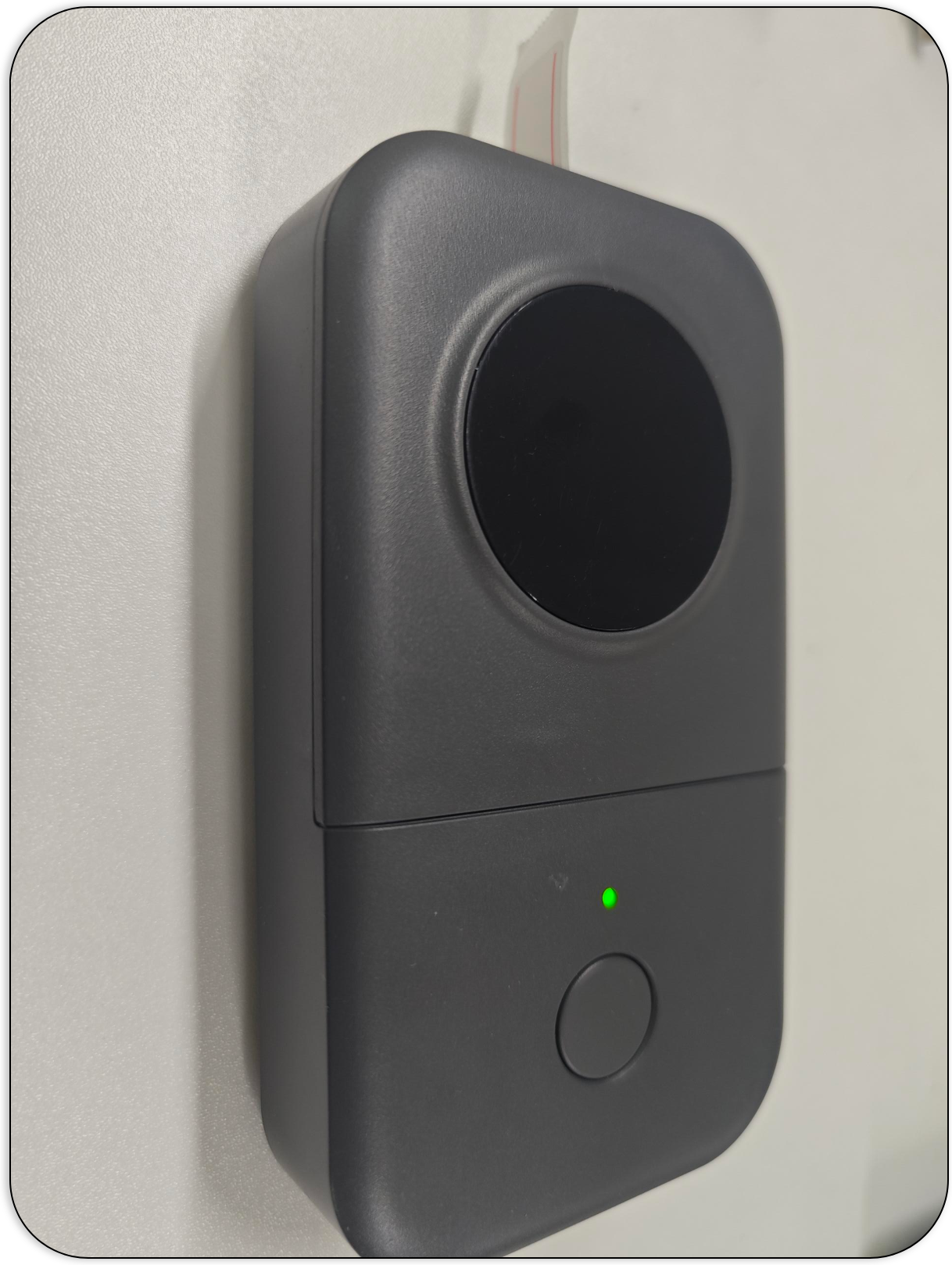

2. Click the Feed button to position the label for calibration.
Place the labelled side to the left and pull the consumable out flat.

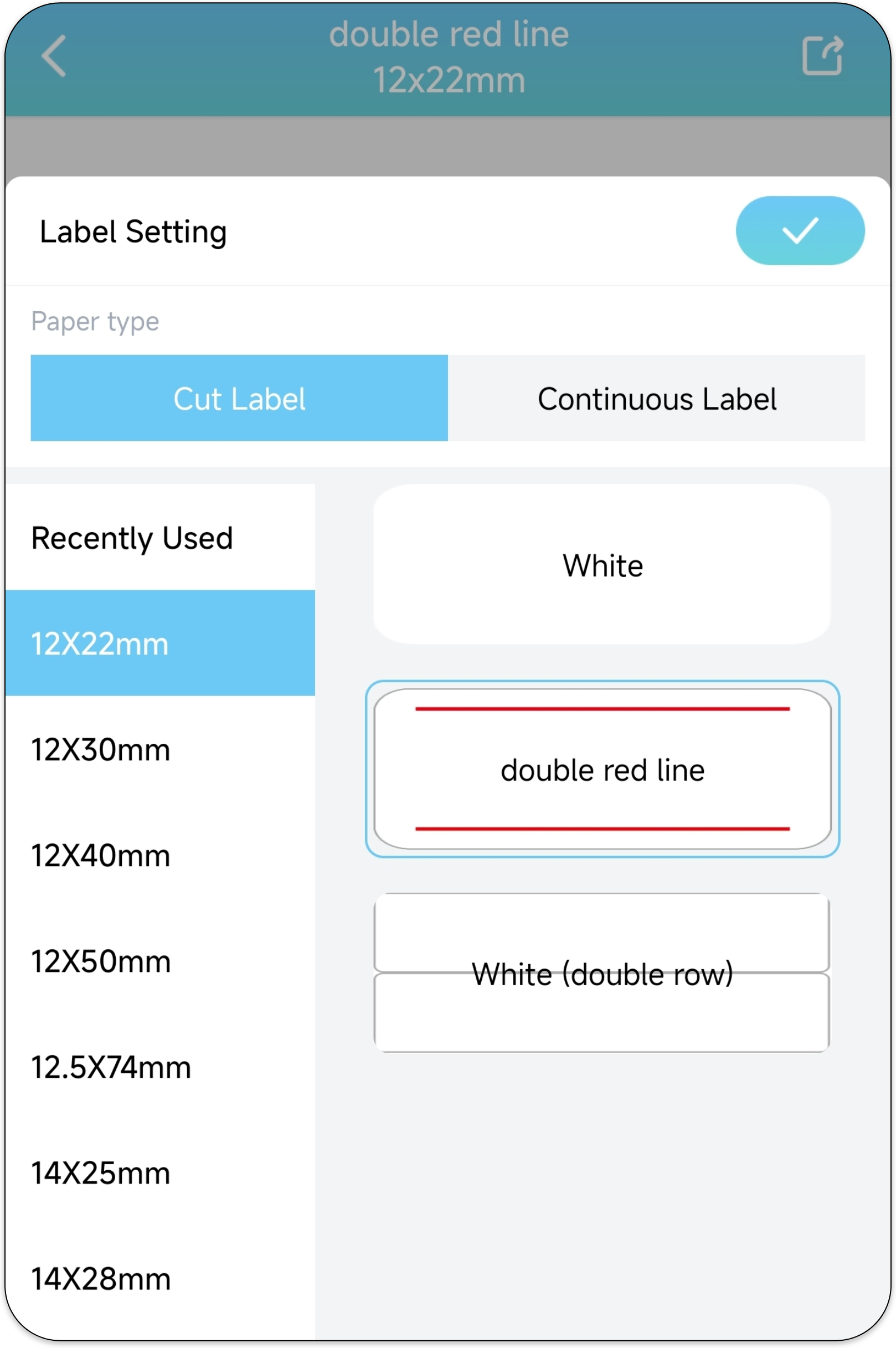

3. Confirm that the set label size and template are correct

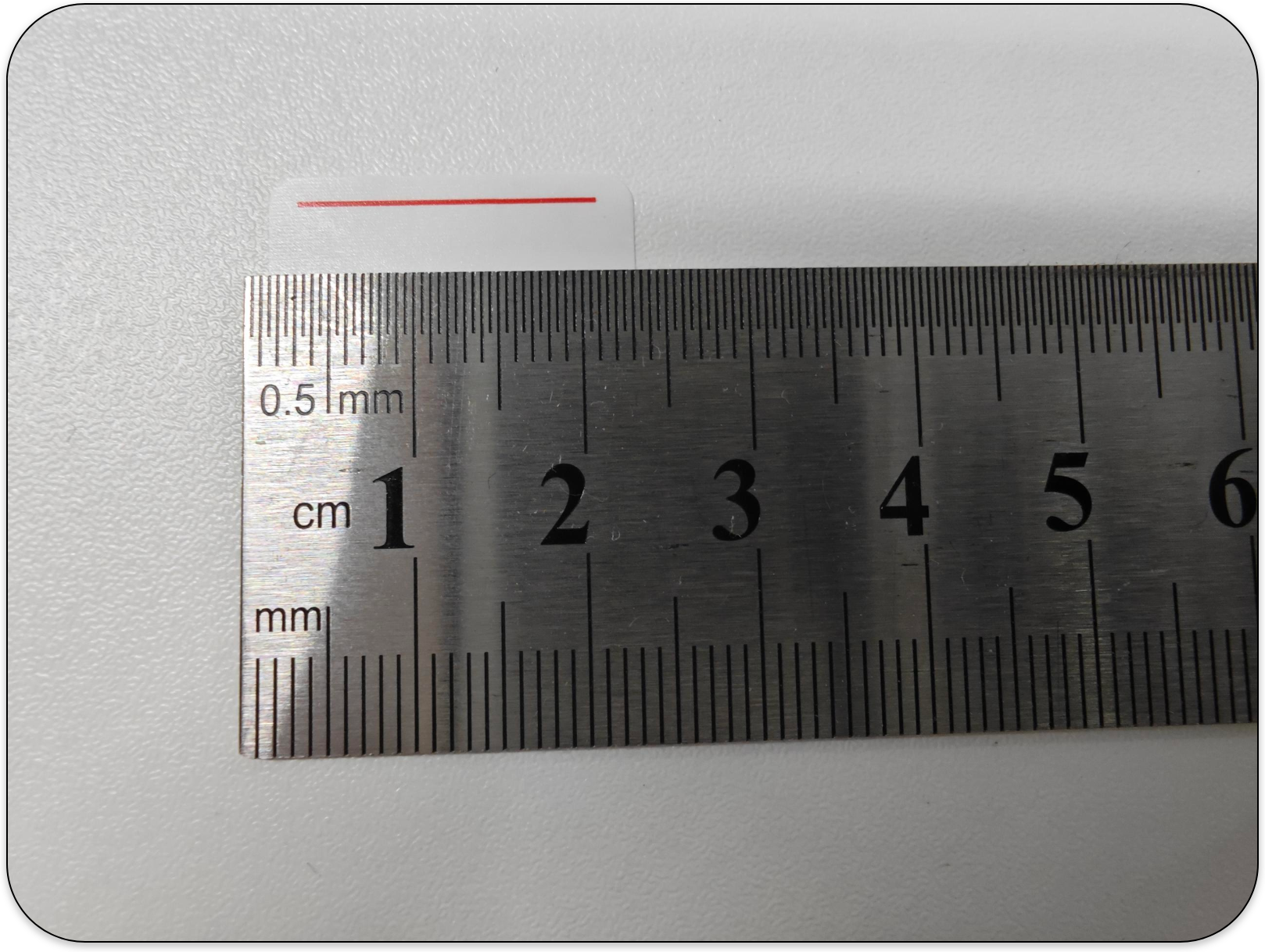

You can read the instructions on the box or measure with a ruler to get the dimensions of the label.
3. If the label template is selected correctly, and the print is still offset, try to remove the label and reset the sensor data.

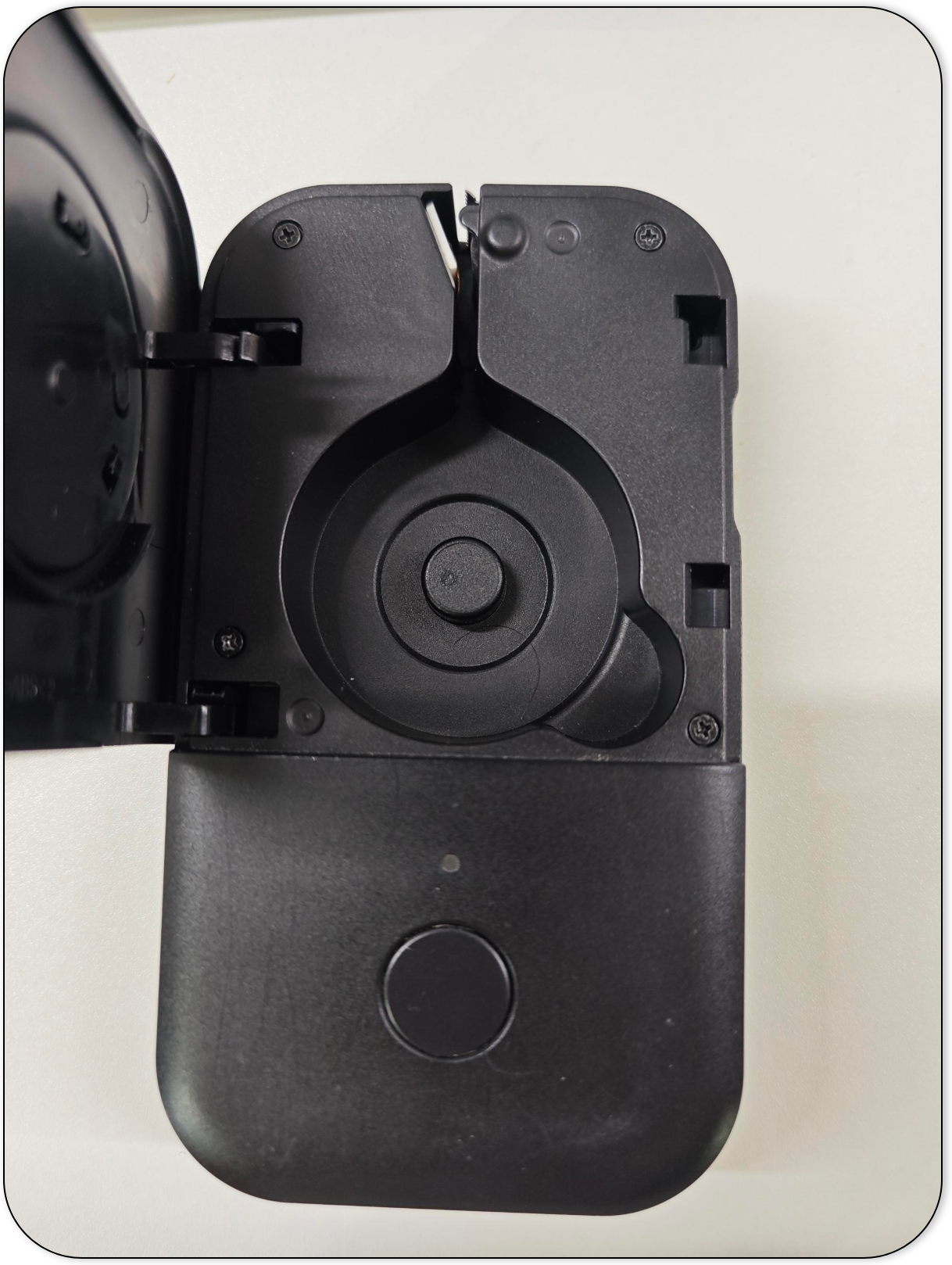

(1)Remove the label roll.

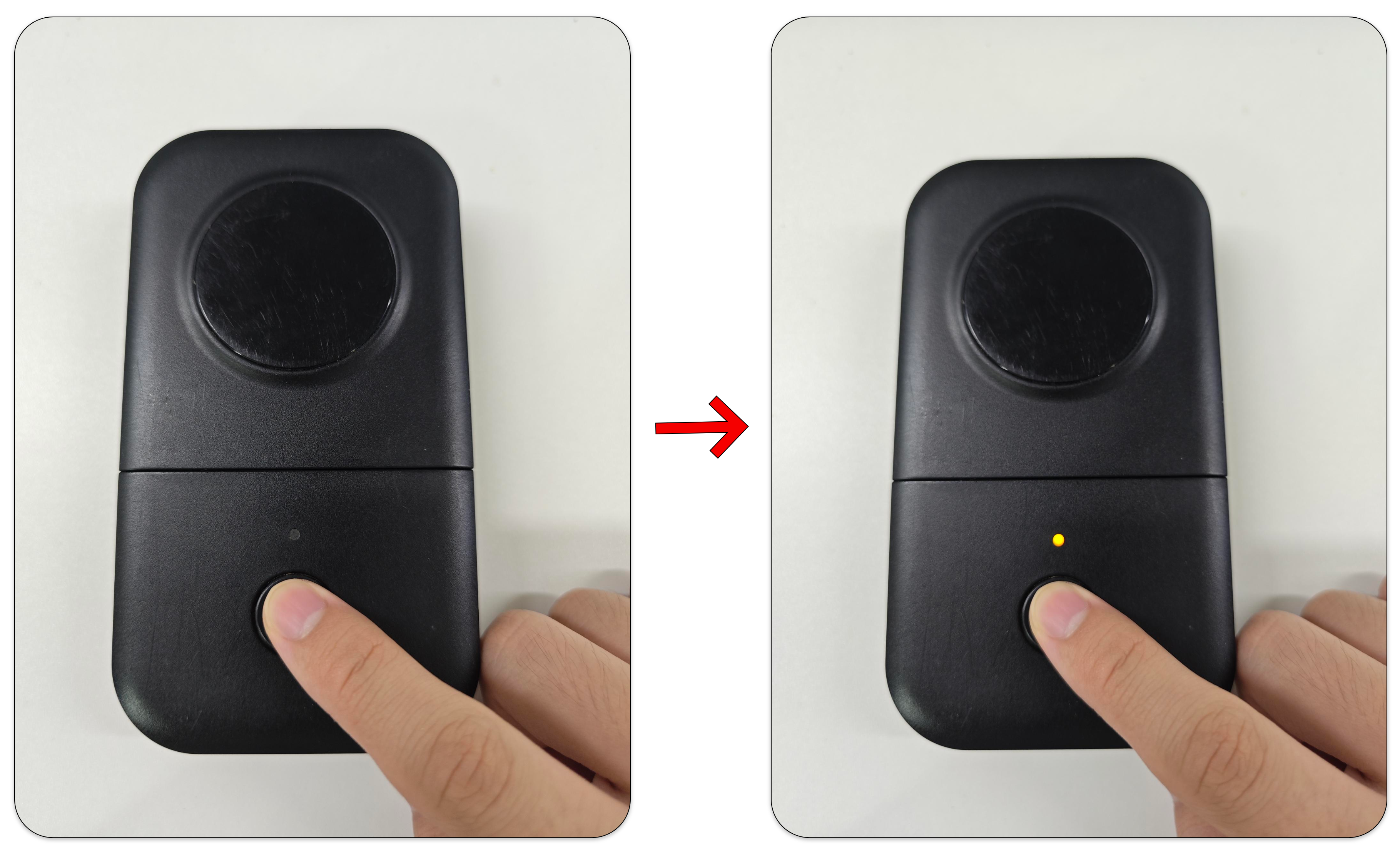

(2) Close the cover and press and hold the power button for ten seconds with power on

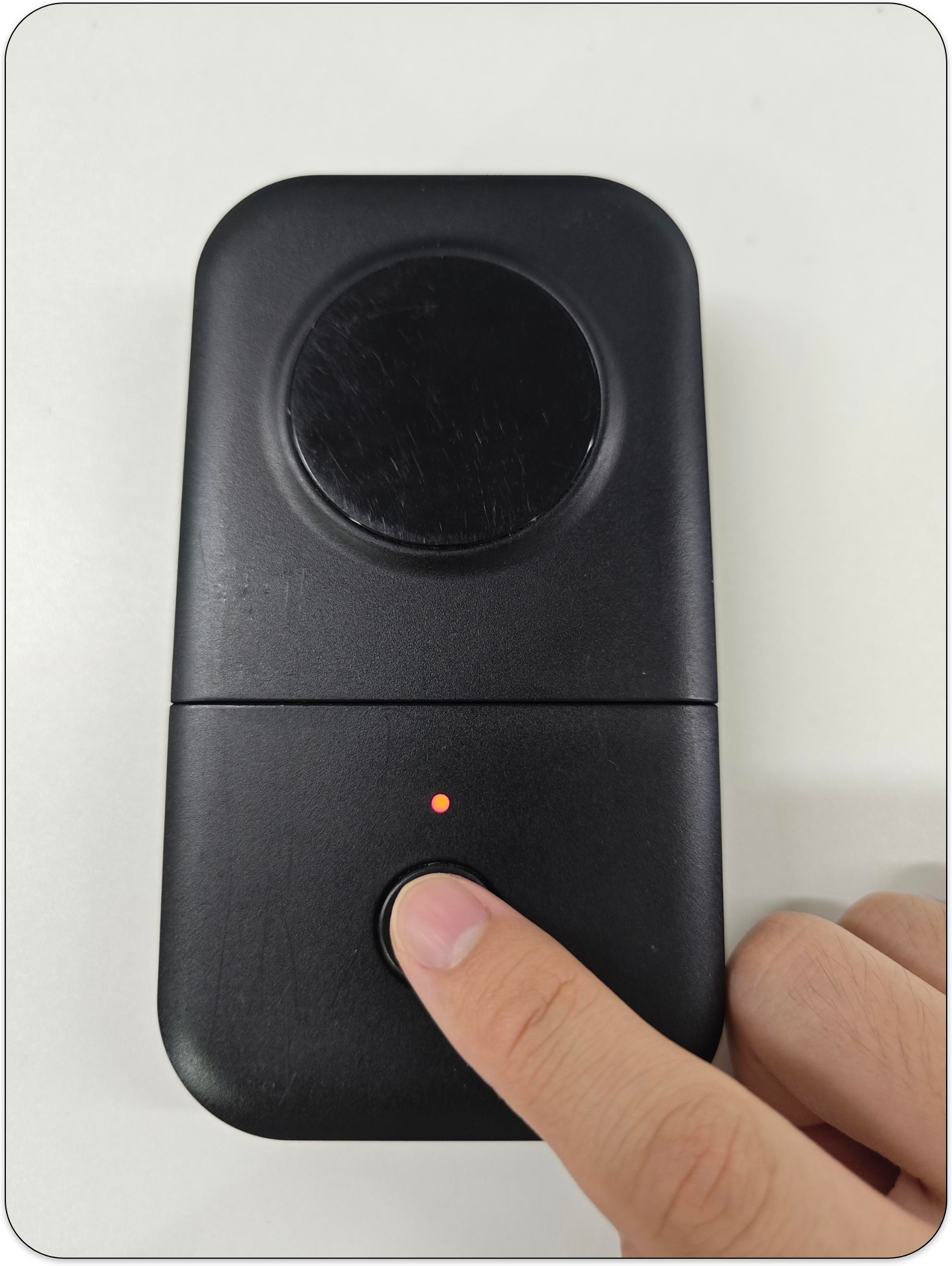

(3) The status light will turn off from red and then turn on yellow after a while.
(4) After the yellow light is on, release the power button, the sensor data reset is complete.
4.If after trying the above steps, your problem is still not resolved.
Email: bestservice2012@outlook.com
(1)Please record a video to show us the problem: turn the printer on and double click the power button to print the self-test page.
(2)Please send the video to us (the video will be used as an important after-sales proof)
(3)Please provide your order number and time of purchase.
(4)After we confirm your information, we will provide you with a better solution.
